Description liuyaqing 2023-06-25 10:08:21 UTC

Created attachment 797 [details]
server安装图形化中文字符是方块

Description of problem:
使用iso镜像anolis-23-x86_64-dvd1-20230619.0.iso进行安装测试,安装选项为:中文-->上海时区-->自动分区-->server,并同时进行其余3项软件选择的勾选(右侧全部勾选),没有发现软件包报错的情况-->设置root密码并允许root用户使用密码进行ssh登录-->创建普通用户

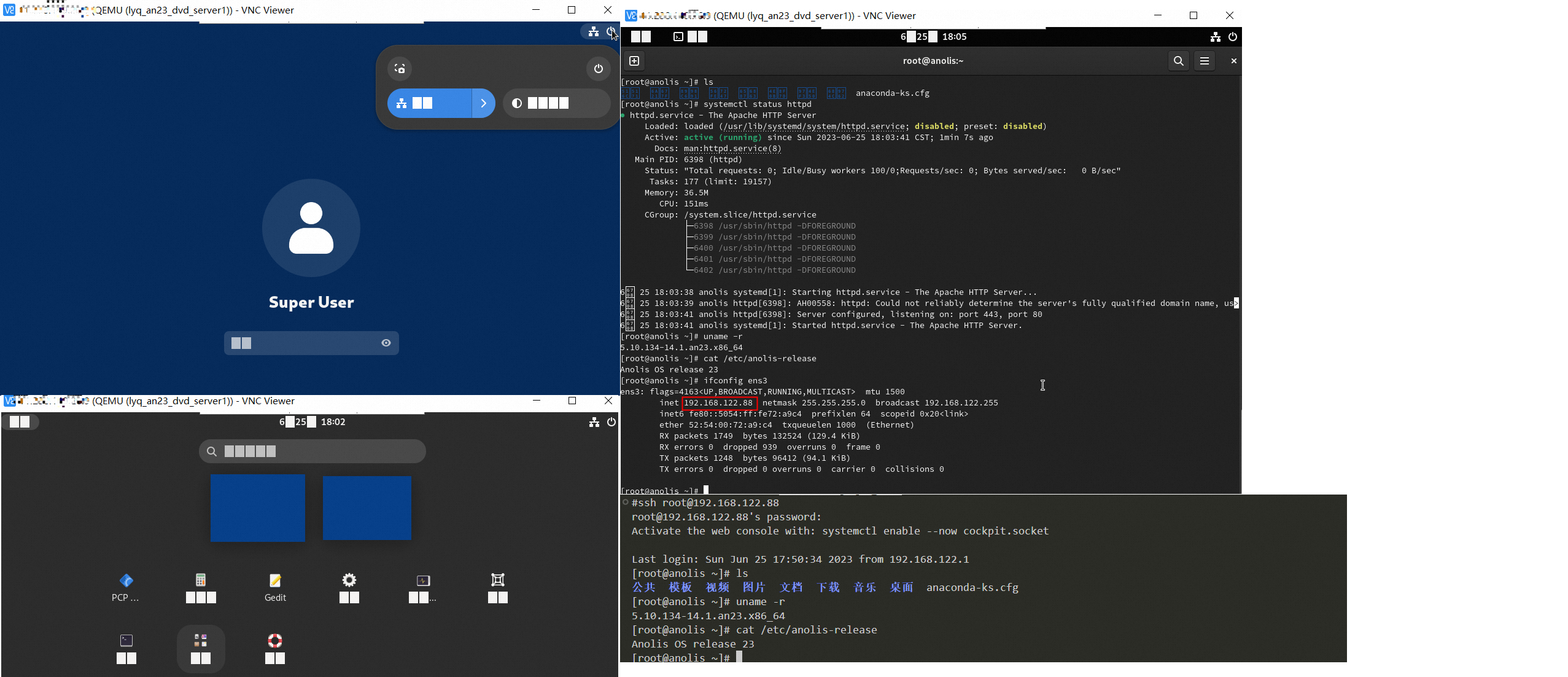

安装完成后重启进入图形化登录界面,图形化界面中文字符显示为方块,无法识别中文字符,但使用ssh root@IP 登录机器字符界面,中文字符正常显示,具体信息见附件截图

Version-Release number of selected component (if applicable):
5.10.134-14.1.an23.x86_64

How reproducible:


Steps to Reproduce:
1.下载iso镜像anolis-23-x86_64-dvd1-20230619.0.iso
2.创建qcow2文件及修改xml文件
3.执行virsh create xxx.xml拉起镜像安装

Actual results:

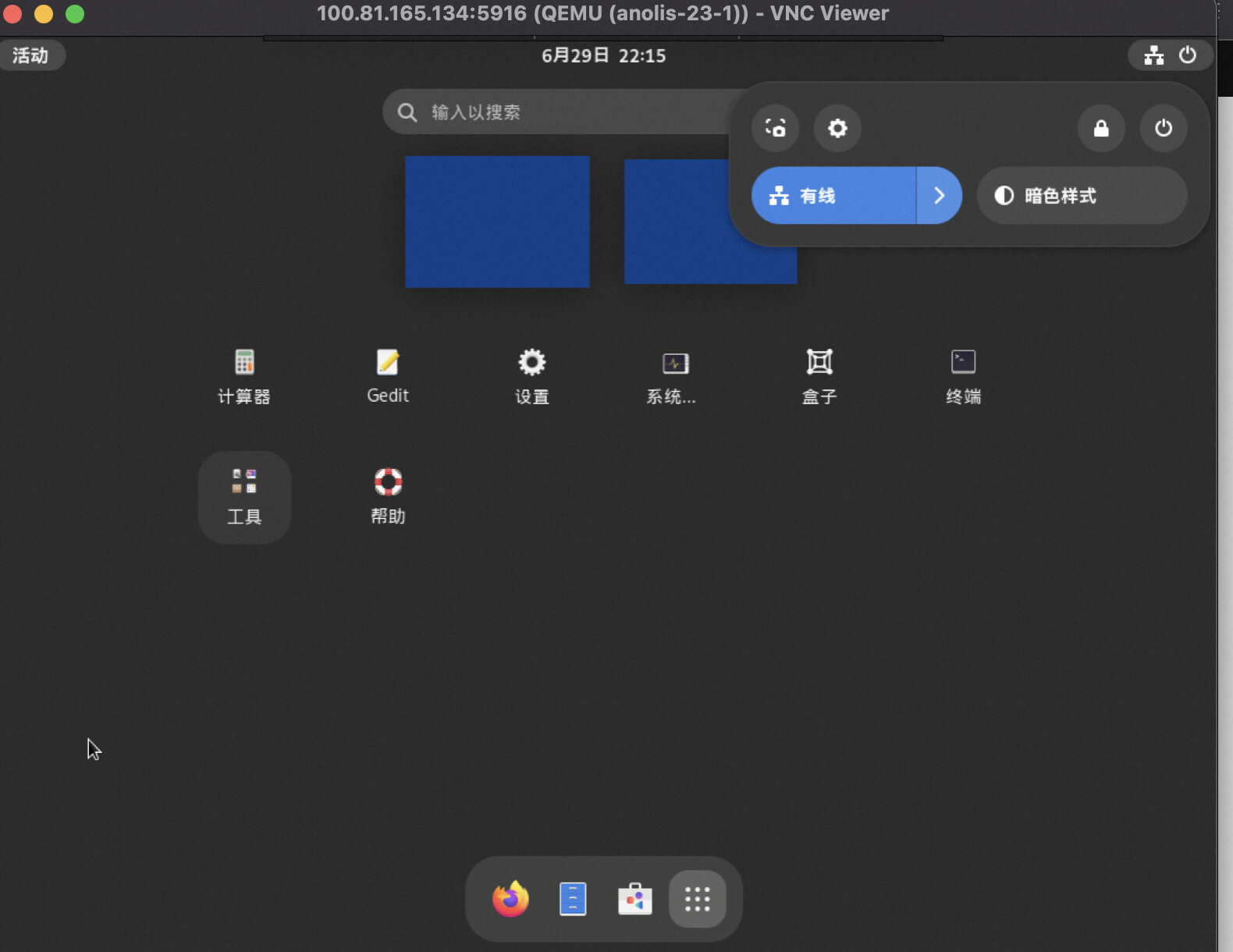

server安装后图形化界面中文字符是方块

Expected results:
server安装后图形化界面中文字符正常显示

Additional info:
创建qcow2文件:qemu-img create -f qcow2 /DiskPath/DiskName.qcow2 40G
xml文件如下:
#cat an23-dvd-server1.xml
<domain type='kvm'>
    <name>lyq_an23_dvd_server1</name>
    <memory>16777216</memory>
    <vcpu placement='static' current='4'>4</vcpu>
    <cpu mode='host-passthrough'>
        <topology sockets='1' cores='2' threads='2'/>
    </cpu>
    <os>    <!-- BIOS安装 -->
        <!-- machine值由 qemu-kvm -M help 获取 -->
        <type arch='x86_64' machine='pc-i440fx-rhel7.0.0'>hvm</type>
        <boot dev='hd'/>
        <boot dev='cdrom'/>   <!-- ISO镜像有安装界面，需要先从cdrom启动，待安装完成后再改为先从硬盘启动 10,11行调换一下顺序即可  -->
    </os>
    <features>
        <acpi/>
        <pae/>
    </features>
    <clock offset="localtime" timezone="Asia/Shanghai">
        <timer name='rtc' tickpolicy='catchup' track='guest'/>
        <timer name='pit' tickpolicy='delay'/>
        <timer name='hpet' present='no'/>
    </clock>
    <on_poweroff>destroy</on_poweroff>
    <on_reboot>restart</on_reboot>
    <on_crash>restart</on_crash>
    <devices>
        <emulator>/usr/libexec/qemu-kvm</emulator>
        <disk type='file' device='cdrom'>
            <driver name='qemu' type='raw'/>
                        <source file='/disk1/liuyaqing/RC2/anolis-23-x86_64-dvd1-20230619.0.iso'/> <!-- iso镜像文件路径 -->
            <target bus="ide" dev="hdc"/>
        </disk>
        <disk type='file' device='disk'>
            <driver name='qemu' type='qcow2' cache='none' dataplane='on' io='native'/>
                        <source file='/disk1/liuyaqing/RC2/an23_dvd1_server1.qcow2'/>  <!-- 这里是刚刚创建的qcow2文件路径 -->
            <target dev='vda' bus='virtio'/>
        </disk>
        <interface type='network'>
            <source network='default'/>
            <model type='virtio'/>
        </interface>
        <console type='pty'>
            <target type='serial'/>
        </console>
        <console type='pty'>
            <target type='virtio'/>
        </console>
        <video>
            <!-- 有时vga类型会导致vnc鼠标不能用，可以使用cirrus试试 -->
            <!-- <model type='cirrus' vram='9216' heads='1'/> -->
            <model type='vga' vram='16384' heads='1'/>
            <alias name='video0'/>
        </video>
        <input type='mouse' bus='ps2'/>
        <graphics type='vnc' port='5900' autoport='yes' listen='0.0.0.0'>
                <listen type='address' address='0.0.0.0'/>
        </graphics>
        <memballoon model='none'/>
    </devices>
</domain>
