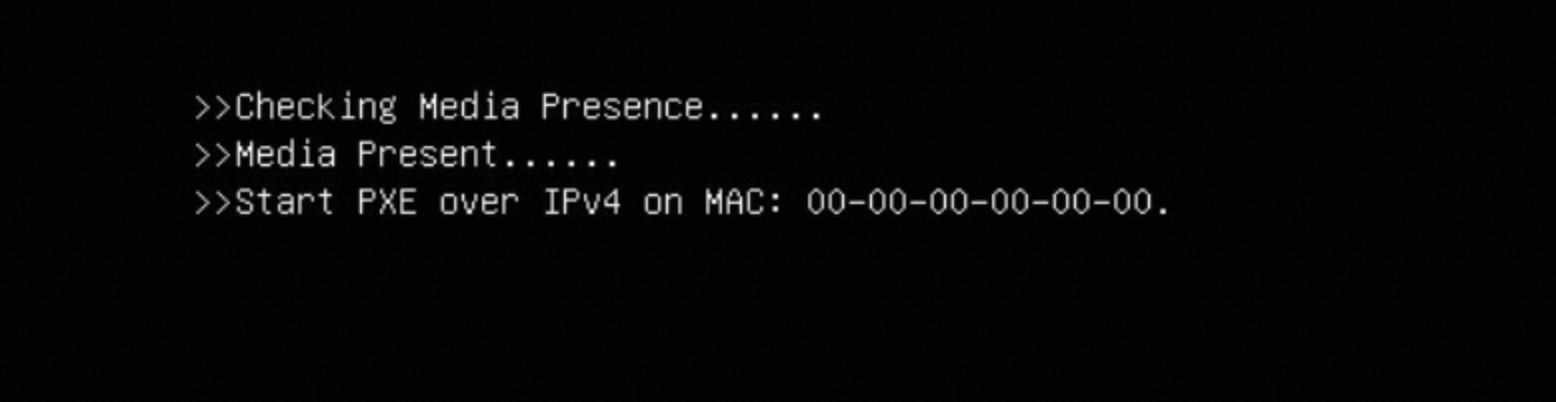

Created attachment 920 [details] 启动失败串口截图 Description of problem: 23.1 的uefi镜像，在AMD Milan 的裸金属环境无法启动 Version-Release number of selected component (if applicable): VHD镜像地址： https://mirrors.openanolis.cn/anolis/23/Nightly/Images/vm/20240103/anolis_23_uefi_x64_20G_alibase_20240103.vhd ECS创建的实例规格： ecs.ebmg7a.64xlarge How reproducible: 上传镜像后，选择对应的规格，然后启动 挂在pxe启动阶段。 启动的日志： 2024-01-04 18:23:48 [1mVirtio-blk 1.0.0+ (4f8daa5a0539af145650d9bf633a5b6541f355d9) 2024-01-04 18:23:48 [0m 2024-01-04 18:23:48 2024-01-04 18:23:48 2024-01-04 18:23:48 Press Ctrl-B to exit remote disk loading... Using virtio-blk on 0000:23:00.0 (open) 2024-01-04 18:23:52 Could not open SAN device: Error 0x03232094 (http://ipxe.org/03232094) 2024-01-04 18:23:52 Exit option rom, rc: -52633748 2024-01-04 18:23:53 [2J[1;1H[1;1H 2024-01-04 18:23:53 >>Checking Media Presence...... 2024-01-04 18:23:53 >>Media Present...... 2024-01-04 18:23:53 >>Start PXE over IPv4 on MAC: 00-00-00-00-00-00. 2024-01-04 18:24:53 PXE-E18: Server response timeout. 2024-01-04 18:24:53 [0m 2024-01-04 18:24:53 2024-01-04 18:24:53 2024-01-04 18:24:53 [1mVirtio-blk 1.0.0+ (4f8daa5a0539af145650d9bf633a5b6541f355d9) 2024-01-04 18:24:53 [0m 2024-01-04 18:24:53 2024-01-04 18:24:53 2024-01-04 18:24:53 Press Ctrl-B to exit remote disk loading... Using virtio-blk on 0000:23:00.0 (open) 2024-01-04 18:24:57 Could not open SAN device: Error 0x03232094 (http://ipxe.org/03232094) 2024-01-04 18:24:57 Exit option rom, rc: -52633748 2024-01-04 18:24:58 [2J[1;1H[1;1H 2024-01-04 18:24:58 >>Checking Media Presence...... 2024-01-04 18:24:58 >>Media Present...... 2024-01-04 18:24:58 >>Start PXE over IPv4 on MAC: 00-00-00-00-00-00. 2024-01-04 18:25:58 PXE-E18: Server response timeout. 2024-01-04 18:25:58 [0m 串口登录的截图见附件 Steps to Reproduce: 如上 Actual results: 环境无法启动 Expected results: 能正常启动 Additional info:
卡在pxe，这都没进内核啊，是不是镜像有问题
与ecs虚拟化的同学确认过，milan机器 vm 不支持uefi，但是裸金属是支持uefi的。因此镜像原因可能性较大。
该问题是因为该机型规格存储为 nvme 存储设备，因此镜像在上传自定义镜像后需要修改镜像属性为支持 nvme。默认不会打开该支持。 修改镜像属性后问题解决，非版本问题。
最新的镜像可以正常启动 [root@localhost EFI]# uname -a Linux localhost.localdomain 6.6.25-2_rc1.1.an23.x86_64 #1 SMP PREEMPT_DYNAMIC Thu Apr 18 22:00:32 CST 2024 x86_64 x86_64 x86_64 GNU/Linux [root@localhost EFI]# [root@localhost EFI]# pwd /boot/efi/EFI [root@localhost EFI]# tree . ├── BOOT │ ├── BOOTX64.EFI │ └── fbx64.efi └── anolis ├── BOOTX64.CSV ├── grub.cfg ├── grub.cfg.rpmsave ├── grubx64.efi ├── mmx64.efi ├── shim.efi └── shimx64.efi 3 directories, 9 files [root@localhost EFI]# ls /sys/firmware/efi/ config_table efivars esrt fw_platform_size fw_vendor mok-variables runtime runtime-map systab [root@localhost EFI]#
